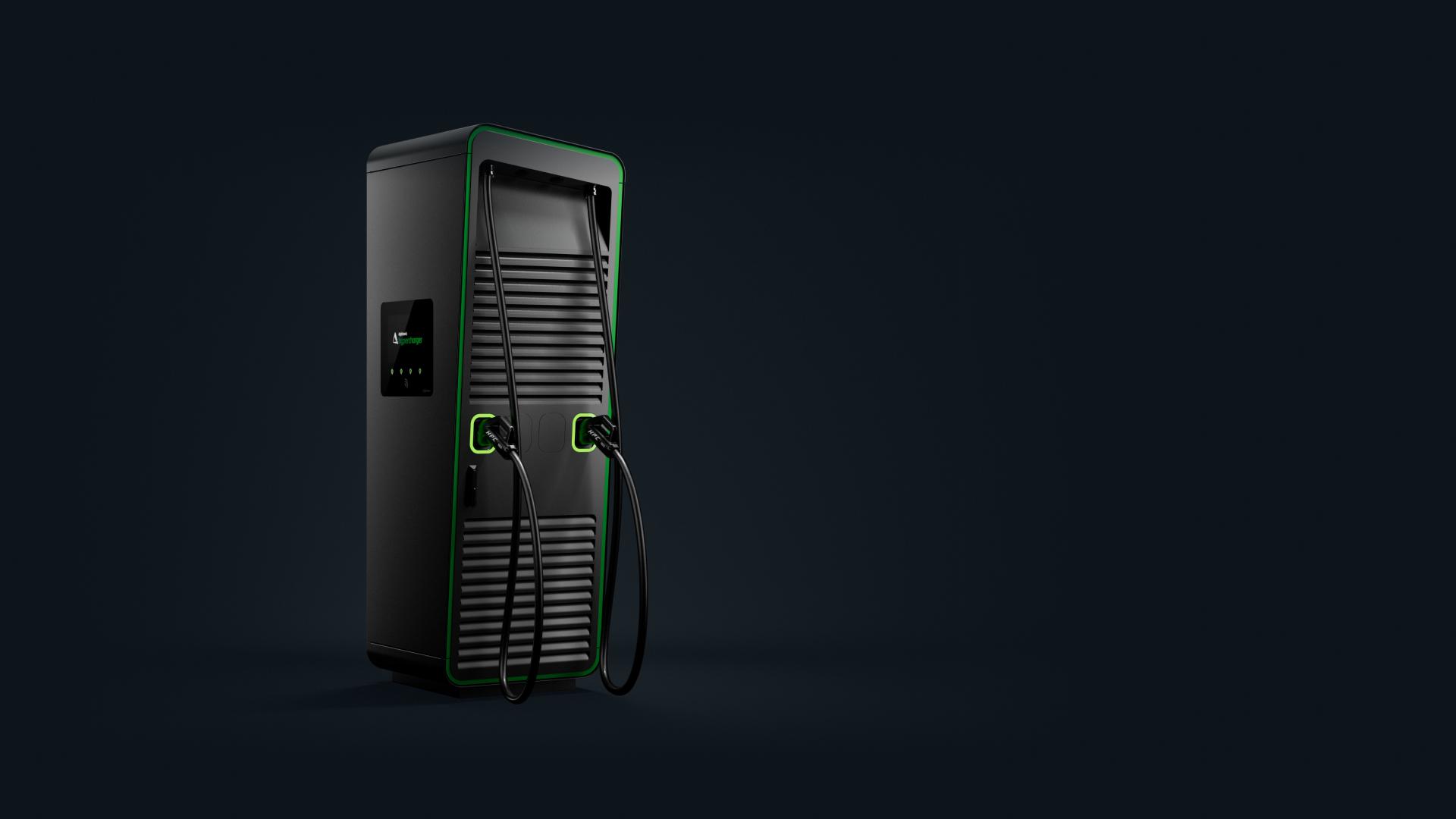

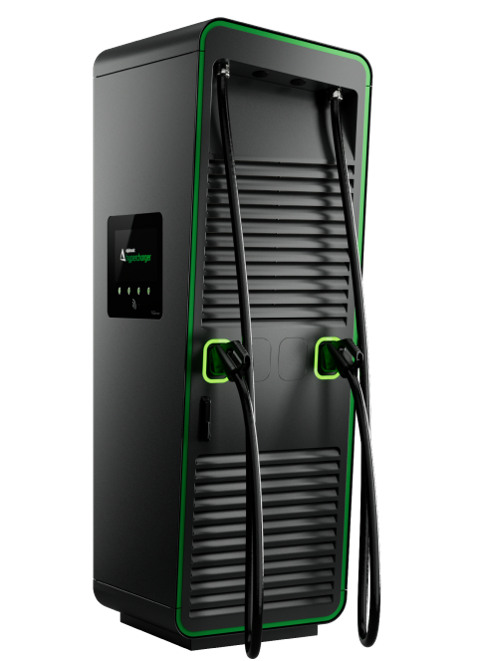

The world's most efficient 400 kW charger
97.5 %
efficiency
Groundbreaking SiC semiconductors deliver a whole new level of efficiency.
Scalable
The Power-Stack concept allows for seamless scaling from 100 kW to 400 kW, offering easy upgrades and ensuring that your investment remains future-proof for years to come.
2x200 kW simultaneous charging
EV charging power continues to increase each year, making it crucial to ensure an adequate power supply for each charging point.
400 kW
power output
A 400 kW charging capacity is ideal to significantly reduce charging times for commercial vehicles and high-performance EVs.
Dynamic load management with 50 kW granularity
Significantly boosts flexibility and enables more efficient distribution of energy among vehicles.

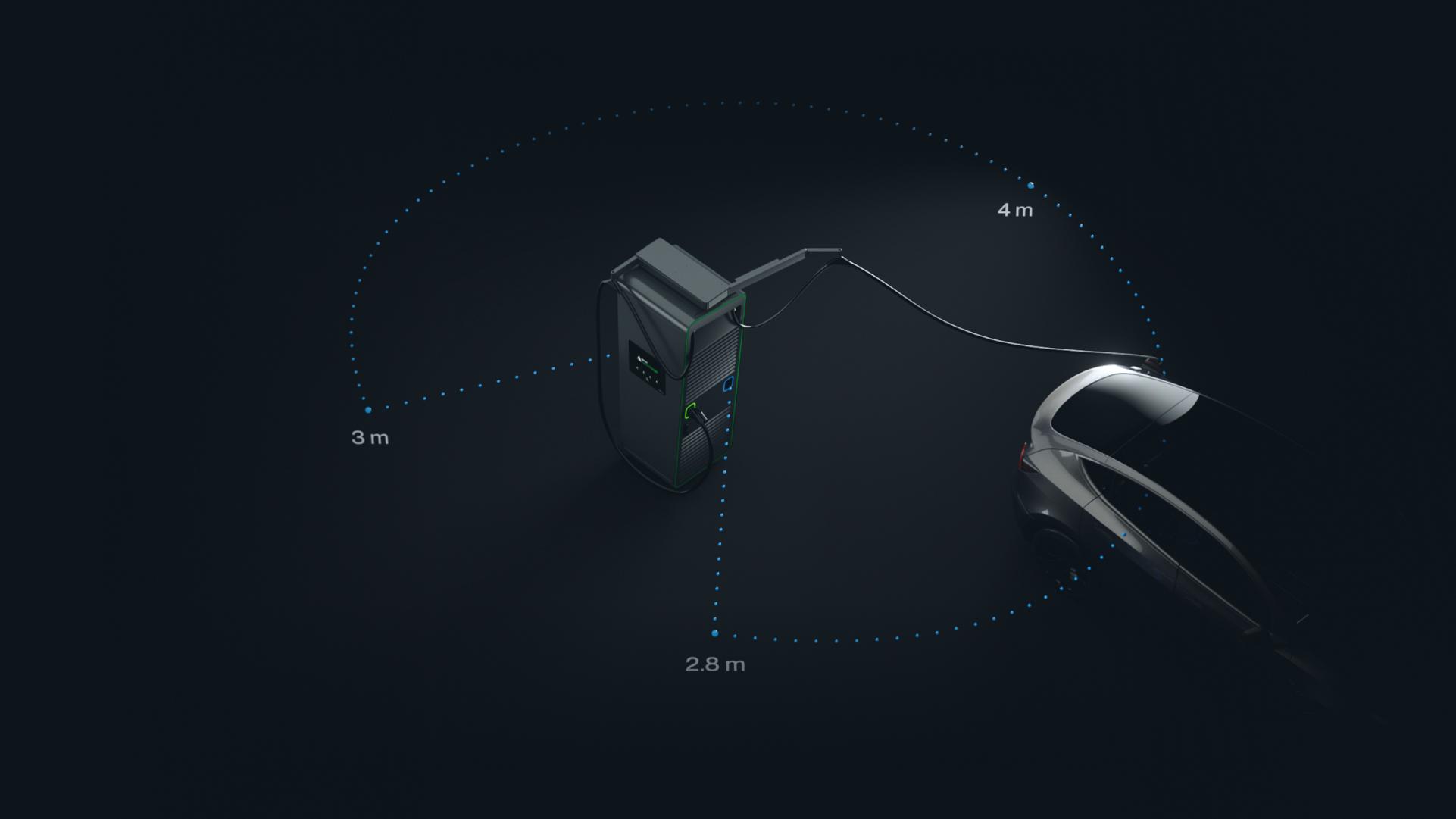

Cable management system
The cable management system provides ease of use and ensures a longer cable lifespan.
Customizable
Branding
The option to customize the Hypercharger with a corporate design has always been a big hit with customers and partners. Its housing features advertising space that can be branded to make the charger uniquely personal.
Customizable
Housing
Personalize the housing with any color imaginable.
Customizable
Reflective stripe
Prominent reflective stripes can be customized to the color of choice, lending each Hypercharger its own distinguishing look.
Customizable
Wrapping
Wrap just part of the station or all around: The customer decides! The result is a uniquely personalized charging station—and best of all, the foiling can be swapped out for a new look at any time!
Technical specifications
Download DatasheetSystem specifications
DC interfaces
CCS2, CHAdeMO, CCS1*, NACS*, GB/T* | (*Only upon special request by OEMs)
Load and charging management
Smart, dynamic allocation of power modules and distribution of charging power to charging points.
Operating temperature
-30 °C up to +55 °C
Operating height
≤ 4,000 m a.s.l. (For configuration with CHAdeMO cables, the max. installation height is limited to 2,000 m a.s.l.)
Environmental conditions, in storage
-40 °C up to +55 °C
Environmental conditions, under transport
-40 °C up to +70 °C
Humidity (in operation, storage)
10% - 95% relative (non-condensing)
Efficiency
up to 97.5%
Protective class
Class I (protective earth connection)
Environment pollution degree
Class 4
Noise emission
< 52 dBA (Standard environmental conditions [20° C, 3 m distance])
Installation location
Indoor and outdoor installation
Type of installation
Floor mounted on plinth or base (Optional concrete foundation base)
Inlet cable
2x 300 mm² per phase, max. ⌀ 33 mm per conductor
Protection rating
IP54
Impact resistance
IK10 in accordance with IEC 62262
Dimensions (H x W x D)
2185 x 732 x 663 mm
Weight
560 kg up to 890 kg (Depending on configuration)
User Interface
15.6” display, 4 buttons
Remote Management
Remote access, diagnostics, software updates
Power Supply
AC nominal voltage (RMS)
400 V -15% | +10%
AC maximum input current (RMS)
630 A
Frequency
50 Hz | 60 Hz
Network type
3phase TN-C | TN-S | TN-C-S | TT
Power factor
> 0.99 @ full load
Controllable PF range
±0.95
THDi
< 5% @ full load
Efficiency
up to 97.5% @ full load
Overvoltage category
OVC III, DIN EN 60664-1
Integrated coordinated lightning protection (SPD)
Type 1 + 2 + 3
Standby power consumption
43 W
Charging interfaces
Maximum total DC output power (1x Power-Stack)
100 kW, max. 300 A
Maximum total DC output power (2x Power-Stacks)
200 kW, max. 600 A
Maximum total DC output power (3x Power-Stacks)
300 kW, max. 1 x 600 A + 1 x 300 A or 2 x 450 A
Maximum total DC output power (4x Power-Stacks)
400 kW, max. 2 x 600 A
Granularity of output power
50 kW
Maximum output current
500 A continuous (600 A boost)
Output DC voltage range
150 Vdc - 1000 Vdc
Charging connection options
CCS2 up to 500 A (prepared for 600 A boost*), CHAdeMO up to 200 A, CCS1, GB/T | (*Preliminary data)
Cable lengths
3.5 m or 5 m with or without Cable Management System (CMS)
Configuration options
Branding
Options for custom colours (powder coating), foil application and stickers
CMS (Cable Management System)
For 5 m cables, provides ease of use and ensures a longer cable lifespan
Mounting
Floor mounted on plinth or base (Optional concrete foundation base)
Accessibility
Optional, barrier-free version for the operating elements and plugs in terms of installation height (1,050 mm each) is possible (in accordance with DIN 18040-3)
Payment system
Choose between different card readers for credit cards or EC card, QR-Code-reader;
Law on Weights and Measurements
DC meters available in accordance with the German Calibration Law
Parameterization of noise levels
Parameters can be set for the maximum noise level for day and night operation (e.g. for use in sensitive areas)
Additional safety features
Emergency stop button (optional), external emergency stop, crash (tilt) sensor, door contact switch;
Multilingual system
GUI in 27 languages
Norms, compliance and standards
DC standard protocol (communications with the vehicle)
CCS1/2: SAE J1772 / EN 61851-24/DIN SPEC 70121; ISO 15118 CHAdeMO 1.2 GB/T 27930 (for automotive multicharger)
RFID system
RFID reader (ISO/IEC 14443A/B, ISO/IEC 15693)
Network connections
LTE/UMTS/GSM Modem 4G/3G/2G 10/100Base-T Ethernet
Communications protocol for the charging infrastructure
Open Charge Point Protocol (OCPP) 1.6 J, ready for 2.0 J
Certifications
TÜV Süd CB DE3-D0044
EU Directive
2014/53/EU (RED), 2011/65/EU (RoHS2), 2015/863/EU (RoHS3), 2012/19/EU (WEEE), 1907/2006 (REACH Regulation)
Electrical Safety
IEC 61851-1, IEC 61851-23, IEC 61439-7 (as required by IEC 61851 series), IEC 62311, IEC 62477-1
RED
ETSI EN 301 330; ETSI EN 301 511, ETSI EN 301 908-1; ETSI EN 301 893; ETSI EN EN 300 328
EMC
EN 61000-6-4, EN 61000-6-2, IEC 61851-21-2 (INDUSTRIAL ENVIRONMENTS), ETSI EN 301 489-1, ETSI EN 301 489-3, ETSI EN 301 489-52
